MFA Control Toolbox for MATLAB® Software

What's New
What’s the Big Deal
What’s the Benefit
Embedded MFA controllers inside MATLAB/Simulink environment as S-functions. A seamless integration. The only simulation software for which a number of field-proven, real-time control products of the same family are available. Run simulation first to prove the concept and then implement with ease. Reduces R&D cost, risks, and time to market.

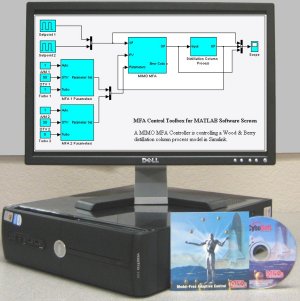

Left: MFA Control Toolbox for MATLAB software: a 2x2 MFA controller S-function controls a 2x2 distillation column model.

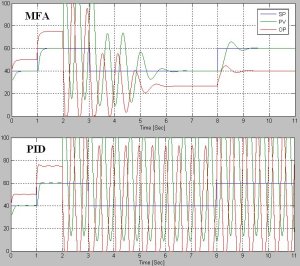

Right: When MFA (top) and PID (bottom) start from the same oscillating condition, PID oscillates continually while MFA quickly adapts to an excellent control condition. When SP is changed, no oscillation is seen.


Model-Free Adaptive Control
MFA Toolbox - Standard Edition
MFA Toolbox - Professional Edition
MFA controls the processes that are too difficult for PID controllers to handle. MFA is the only "No Model" advanced controller on the market that can control complex systems without the use of first-principle mathematical models or dynamic modeling based models. Once installed, no controller parameter tuning is required.

Better control means improved process stability, higher production efficiency and yield, consistent product quality, and reduced material and energy waste.

Includes 6 standard MFA controllers:

  • SISO MFA to replace PID to eliminate manual tuning,
  • Nonlinear MFA to control extremely nonlinear processes,
  • Anti-delay MFA to control processes with large time delays,
  • MFA pH to control pH processes,
  • Robust MFA to force PV to stay within defined bounds, and
  • Feedforward MFA to compensate for measurable disturbances.

Note: Included in the Pro Edition.

Includes more special MFA controllers:

  • Flex-phase MFA to control open-loop oscillating processes,
  • Anti-inverse MFA to control processes that change signs,
  • MIMO (2x2, 3x3, 4x4) MFA to control multi-input-multi-output processes,
  • Anti-delay MFA pH controller for pH process with large time delays,
  • MFA XRT for exothermal reactors,
  • Time-varying MFA for time-varying processes, and
  • More controllers & process models.

The Inside of Model-Free Adaptive (MFA) Control

MFA Features
MFA Inside Story
Key Points
Description
Controls complex systems
Adaptive
Adaptive weighting factors are updated in every sample interval to minimize error e(t).
Requires no precise process models Robust
Provides a wider robust range than PID and many other controllers.
Requires no process identification Speed
No time consuming model training; controls process immediately.
Requires no controller design Stability
Guarantees closed-loop stability for passive processes.
Requires no complicated manual tuning Ease of Use
Easy to configure, launch, and maintain.
